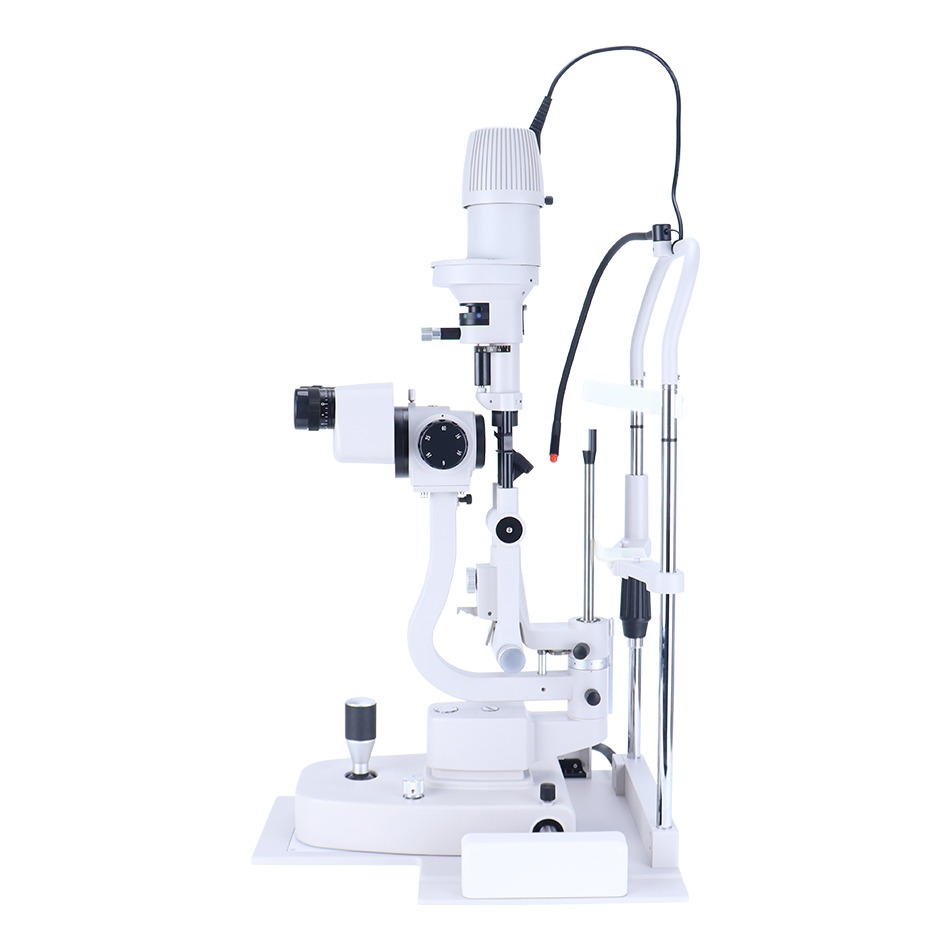

LS-4 Slit Lamp
.png)
Description
LS-4 Slit Lamp: Precision and Clarity in Ocular Examination
Elevate your ocular examinations with the LS-4 Slit Lamp, equipped with advanced optics and versatile magnification options. This slit lamp offers a Galilean system with a parallel type design, reminiscent of the renowned Haag-Streit type, ensuring exceptional clarity and precision in every examination.
Key Features:
- Galilean System: The LS-4 utilizes a Galilean system, known for its exceptional imaging quality and accuracy in ocular examinations.
- Magnification Changer: Easily switch between magnifications using the rotating drum changer, ensuring quick adjustments for various examinations.
- Multiple Magnification Options: Enjoy a range of magnifications: 6X, 10X, 16X, 25X, and 40X, catering to different diagnostic needs.
- Eyepiece: The 12.5X eyepiece ensures comfortable and detailed observations during examinations.
- Wide Field of View: Experience a broad field of view with varying diameters for each magnification, allowing comprehensive examination.
- Pupil Range: The LS-4 accommodates a pupil range of 52 - 82 mm, ensuring flexibility for patients of different ages.
- Diopter Adjustments: The LS-4 provides a diopter range of ±7D, facilitating precise focus adjustments for patients with varying visual needs.
Versatile Applications:
- Ophthalmic Examinations: Perform comprehensive eye examinations, including anterior segment evaluations, with exceptional clarity and accuracy.
- Pathological Observations: Detect and analyze ocular pathologies and abnormalities with precision, aiding in accurate diagnosis and treatment planning.
- Refraction Assessments: Utilize the LS-4 for detailed refraction assessments, ensuring optimal visual correction for patients.
- Contact Lens Fitting: Evaluate and fit contact lenses effectively, enhancing patient comfort and visual acuity.
Experience the LS-4 Slit Lamp's exceptional optical performance and versatile magnification options, enhancing your ability to deliver accurate and thorough ocular examinations.
Product Dimensions
Width
cm
Height
cm
length
cm
Weight
g
Product Specifications
Features
5 Step Magnification
LED Illumination
More than 50 000 hours working time
Reduce eye's stress
Provide bright and sharp light
Continuous illumination control
Possible accessories
Yellow filter
Optical System LS-4
Type: Galilean system, Parallel type, Haag-streit type
Magnification Changer: Rotating drum change
Magnification: 6X 10X 16X 25X 40X
Eyepiece: 12.5X
Field of view: 6x(φ33) 10x(φ22) 16x(φ14) 25x(φ8.5) 40x(φ5.5) mm
Pupil Range: 52 - 82 mm
Diopter: ±7D
llumination
Slit Width: Continuous from 0 to 14 mm
Slit Length: Continuous from 1 to 14 mm
Slit angle: 0° - 180°
Slit Aperture: Continuous from 1 - 14 mm, φ14, 10, 5, 3, 1, 0.2 mm
Slit Vertical Tilt: 5° 10° 15° 20°
Filter: Heat Absorption, Grey, Redfree, Cobalt Blue
Fixation Lamp: Red LED 3.5V
Light Resource: LED
Power
Input Voltage: 100 - 240V 48 - 62Hz
Input Power: 70VA
Dimensions and Weight
Dimensions: 740*640*450 mm
Net Weight: 21kg
Gross Weight: 24kg
