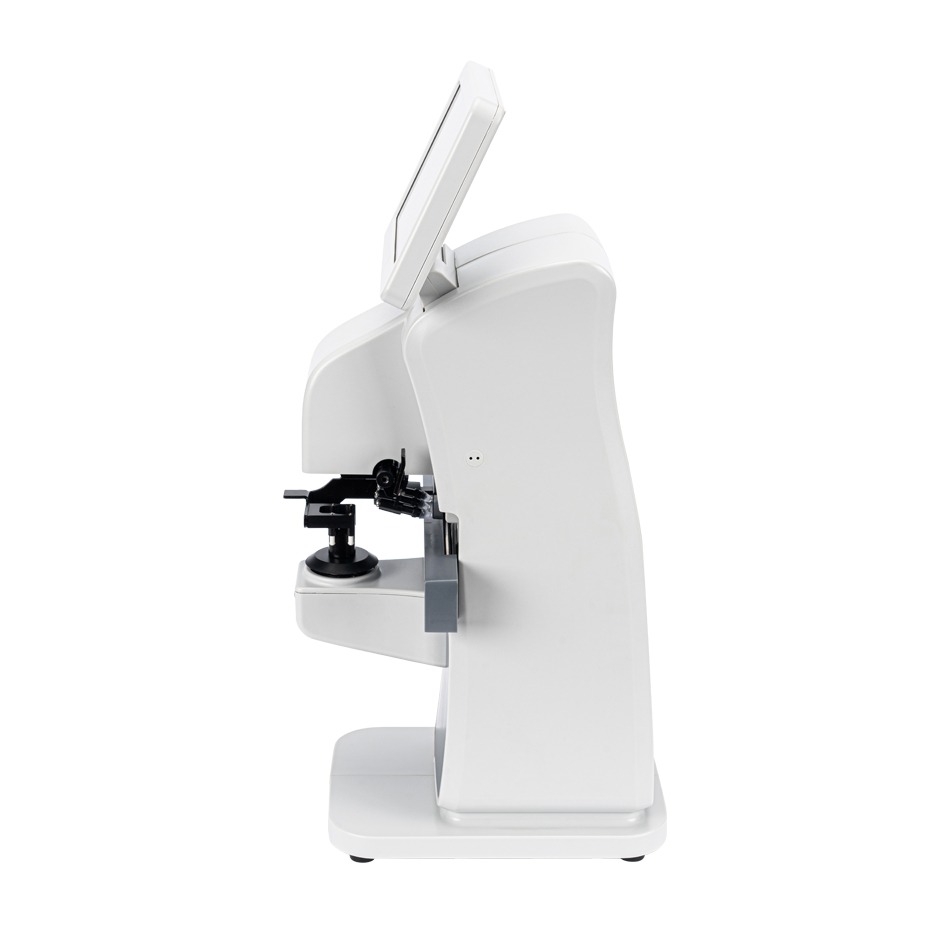

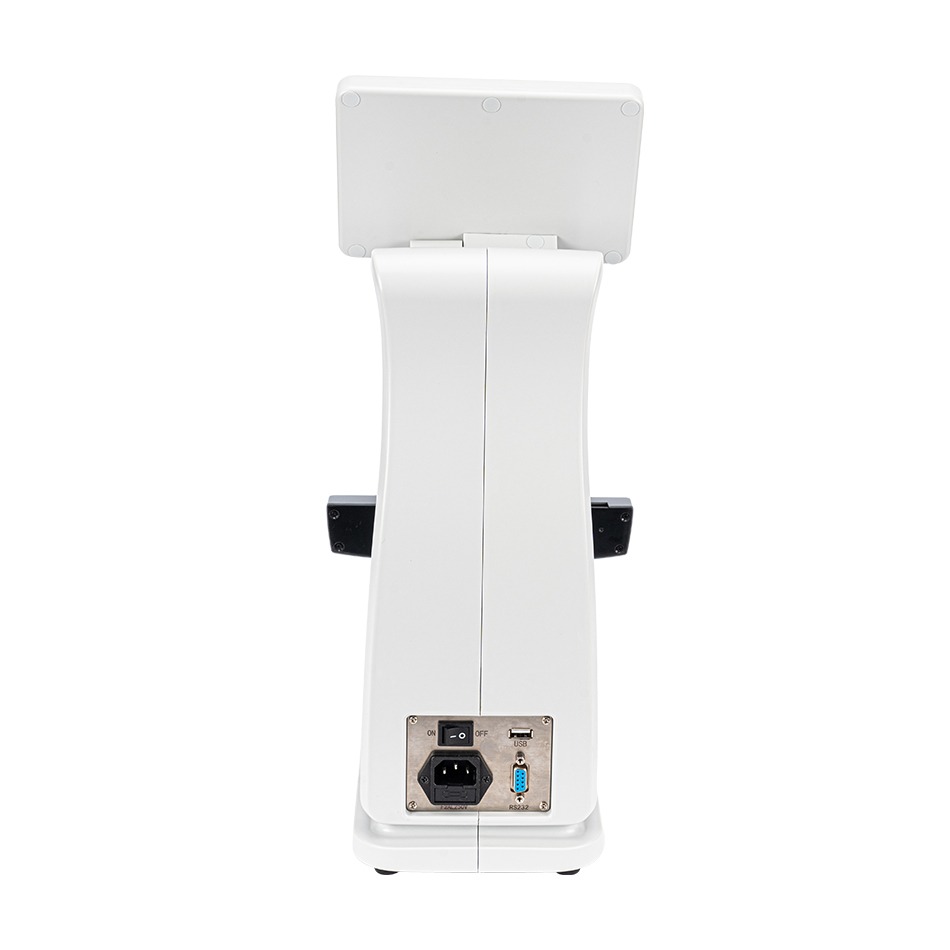

LM-260 Auto Lensmeter

Specifications

Cylinder mode: +, + / -, -
Prism representation mode: X-Y: Cartesian coordinates H: I, O. V: U, D
P-B: Polar coordinates mm: X and Y are both expressed in mm
Reading resolution: 0.01D/0.06D/0.12D/0.25
Interpupillary distance measurement function
Can measure lens with high refractive index, polarization, high
dispersion, solar film, multi-focus, scratch, etc. single light, double
light, triple light, progressive multifocal light, etc.
UV / blue light transmittance measurement function
Contact lens measurement function
Measurable lens: >10%; the transmittance of lens when the power exceeds 10D is required >20%
Contact lenses: 0 to ± 25D, BC 6.00 to 9:00
Display: 7.0-inch HD touch LCD monitor
Menu: user-friendly design, easy to operate
Applicable lens diameter: 20mm - 100mm
Power supply: AC100(±10%)-240(±10%)V 50/60Hz 40VA
Maximum power: 40W
Weight: 6.8kgs
Instrument specifications: 550mm (L) × 350mm (W) × 350mm (H)
Environmental conditions
a. Temperature: 5-40C (use temperature) -20-60 ° C (storage / transport temperature)
b.Humidity: 30-85% (non-condensing) (use humidity) 10- 95% (storage / transport humidity)
c. Atmospheric pressure: 700-1060hpa
d. Altitude: up to 2000m
e. Other: no harmful dust and smoke
Optional accessories: printer (built-in thermal printer, paper width: 57mm)

Range:
Sphere Lens 0 to ±35D (Increments 0.01D/0.06D/0.12D/0.25D)

Range Increments
<0D, ≥-5D >0D, ≤+5D ±0.06
<-5D,≥-10D >+5D,≤+10D ±0.09
<-10D,≥-15D >+10D,≤+15D ±0.12
<-15D,≥-20D >+15D,≤+20D ±0.18
<-20D,≥-35D >+20D,≤+35D ±0.25
Cylinder Lens:   0 to±10D (Increments 0.01D/0.06D/0.12D/0.25D)
Axis:   0°to 180 (Increments 1°)
ADD:   0 to 10D (Increments 0.01D/0.06D/0.12D/0.25D)
Prism:   0 to 15A (0.01△)
Prism Range                       Increments
>0△, ≤5△                                0.1△
>5A, ≤15△                             0.2△

Cylinder Mode : +，+/-，-
Prim Mode: cartesian coordinates H: l,o .v: u,D P-B;polar coordinates
mm: X and Y in mm
Increments: 0.01D/0.06D/0.12D/0.25D

PD Measurement
Measure single vision lens, bifocal lens, trifocal lens and progressive lens, etc.
UV/Blue Light Transmissivity Detection
CL Lens Accessible
Reflect Ratio: >10% Reflect Ratio while Diopter over +/-10D > 20%
Contact lens: 0 to ±25D, BC 6.00 to 9.00
Monitor: 7.0 Inch HD Touch Screen
Menu: humanized Design and Easy Operation
Lens Diameter Capacity: 20mm-100mm
Voltage: AC 100 (±10% ) -240 ( ±10%)v 50/60Hz 40VA
Power: 40w
Weight: 6.8kgs
Machine Size:55omm*350mm*350mm(L*W*H)
Storage Condition
a.Temperature:5-40℃ (In use）-20-60°c( Storage/Transportation)
1.  Humidity: 30-85% 10-95% (Storage/Transportation)
2.  Air Pressure: 700-1060hpa
3.  Altitude: up to 2000m
4.  Others: No Harmful Dust or Smog

‍
